69 Chevelle ls turbo build - Page 3

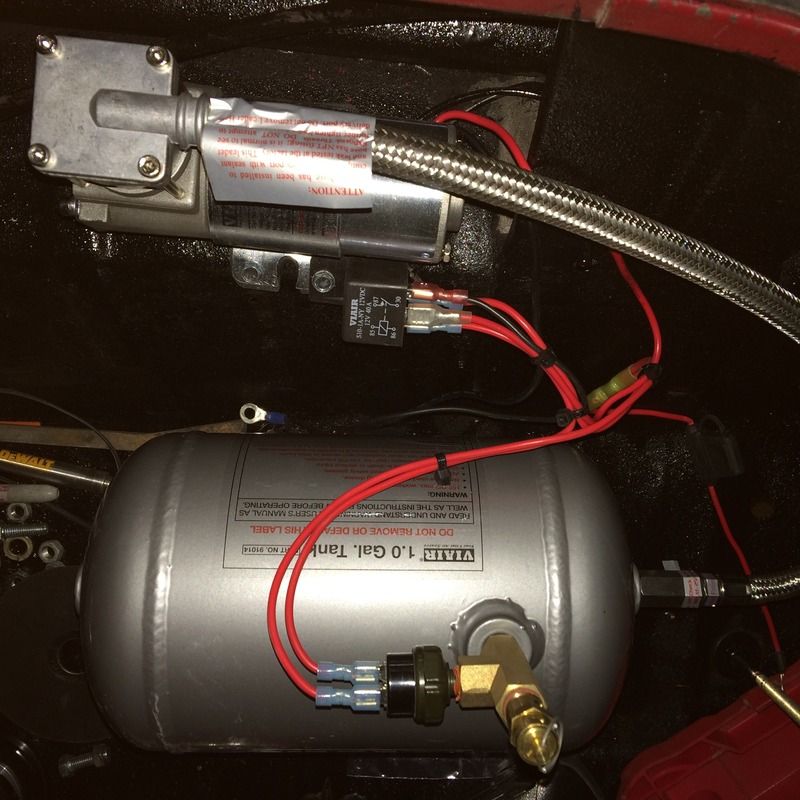

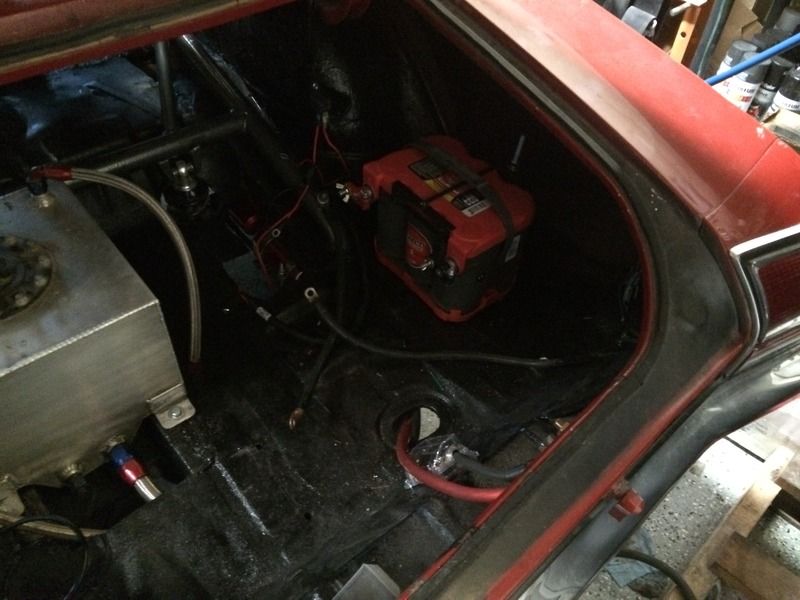

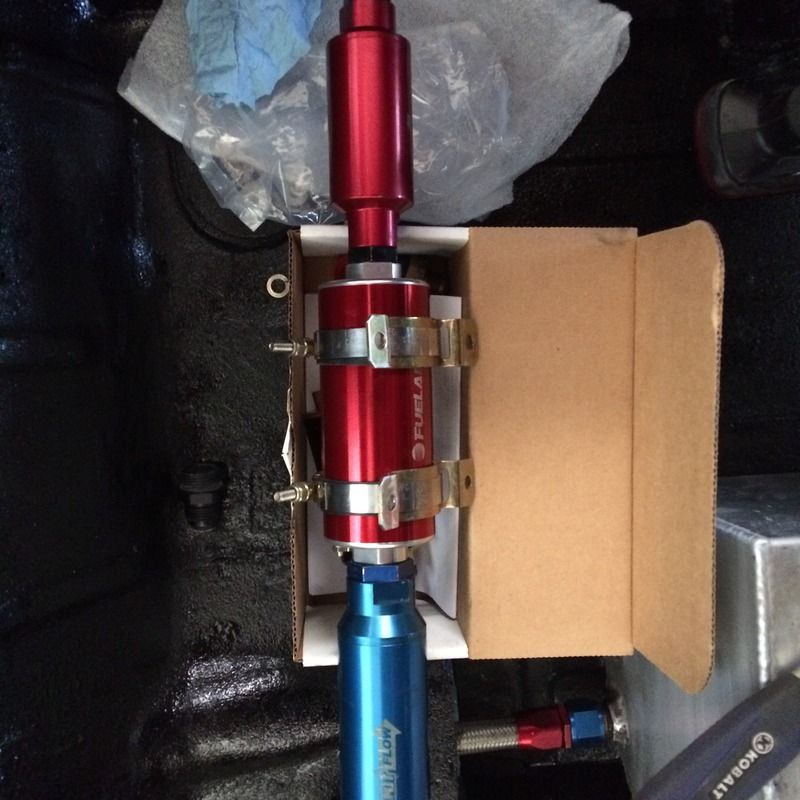

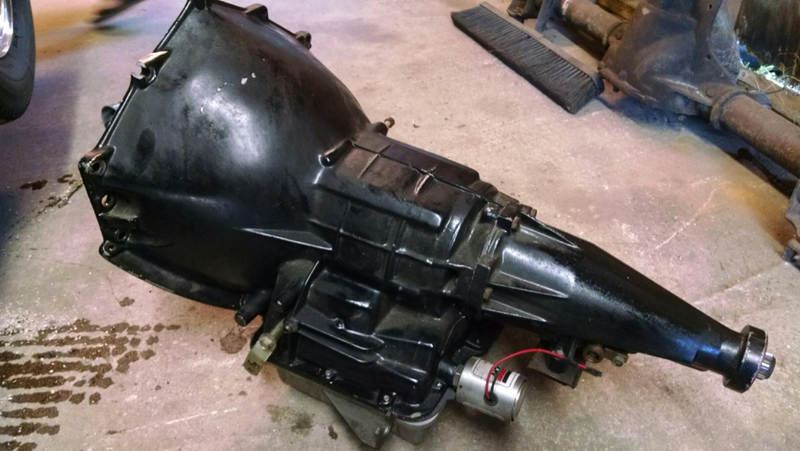

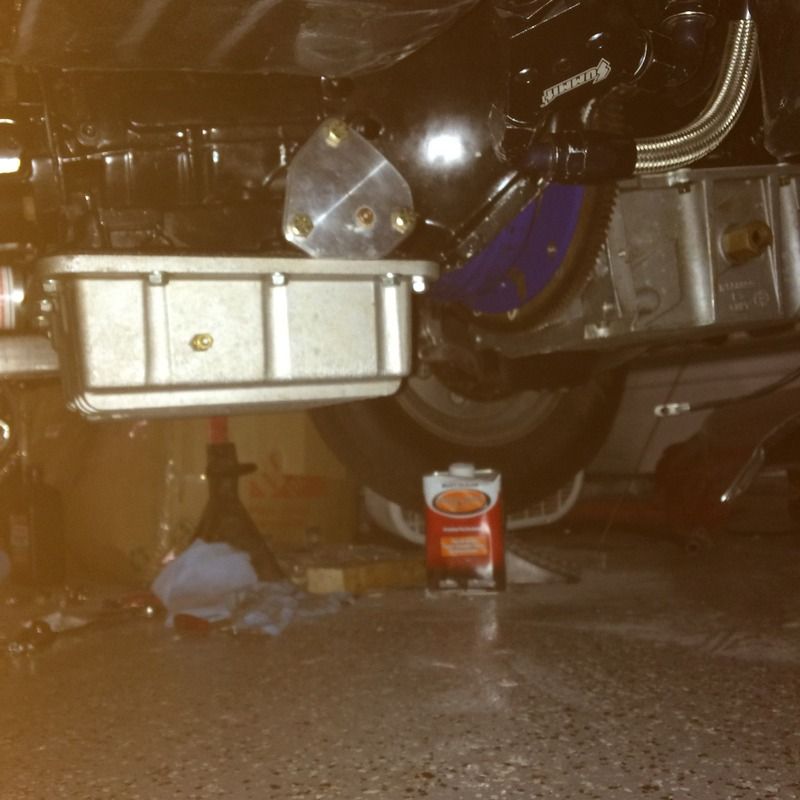

98Camarod · 11-11-2015, 06:34 PM

More

Foose04 · 11-11-2015, 09:59 PM

Super cool build man, keep at her!

pontiac_boy · 11-12-2015, 10:47 AM

Cool to see you decided to stick with it after your misfortune.

98Camarod · 11-12-2015, 06:55 PM

Quote:

Originally Posted by pontiac_boy

Cool to see you decided to stick with it after your misfortune.

For now lol

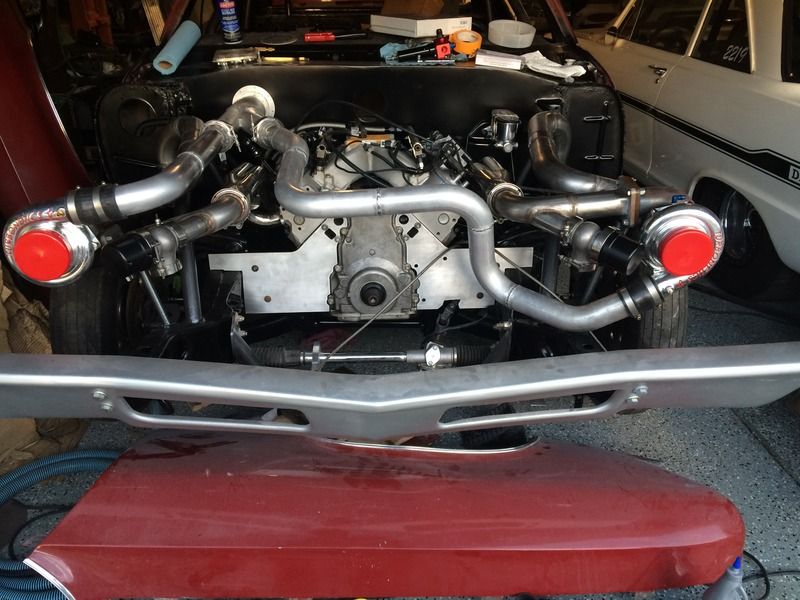

Anyone know where I can get my water pump milled down the thickness of the motor plate?

05Saleen · 11-12-2015, 07:30 PM

Can you post some pic's of the motor and interior of the Chevy 2

Carlrx7 · 11-13-2015, 07:41 PM

Quote:

Originally Posted by 98Camarod

For now lol

Anyone know where I can get my water pump milled down the thickness of the motor plate?

I think you'd be better off with an electric pump or remove the plate from covering the water jacket holes, that lil water pump bolt holes in shear like that doesn't seem like it will last to what power you are trying to make.

98Camarod · 11-13-2015, 10:29 PM

Quote:

Originally Posted by Carlrx7

I think you'd be better off with an electric pump or remove the plate from covering the water jacket holes, that lil water pump bolt holes in shear like that doesn't seem like it will last to what power you are trying to make.

That's where this plate holds the motor. I'd rather not get an electric pump since I already have the mechanical pump

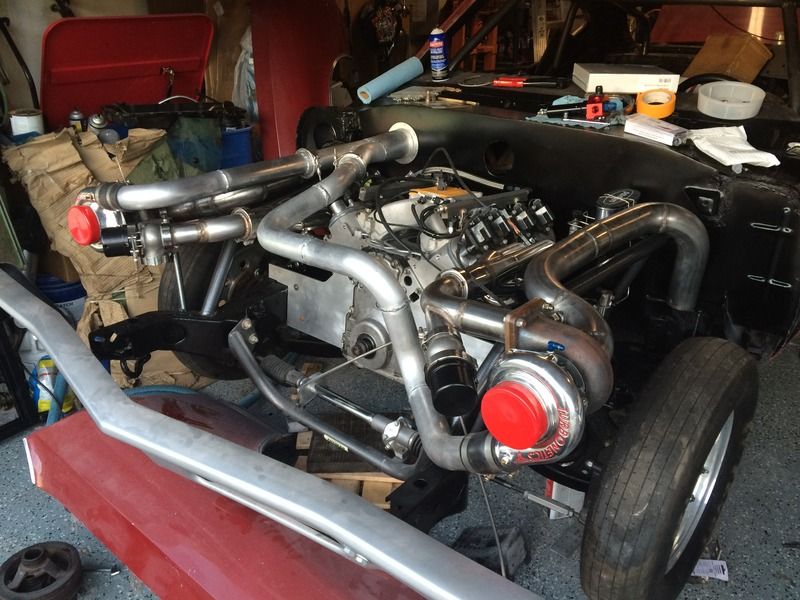

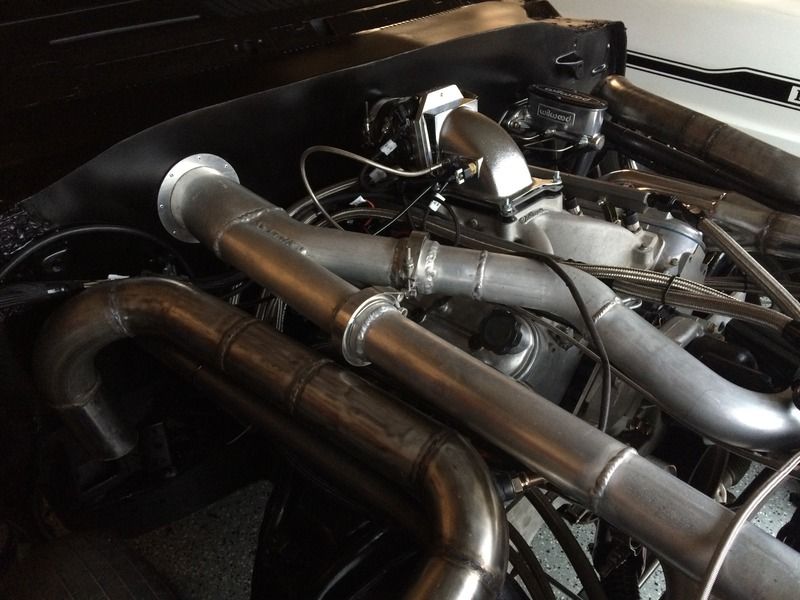

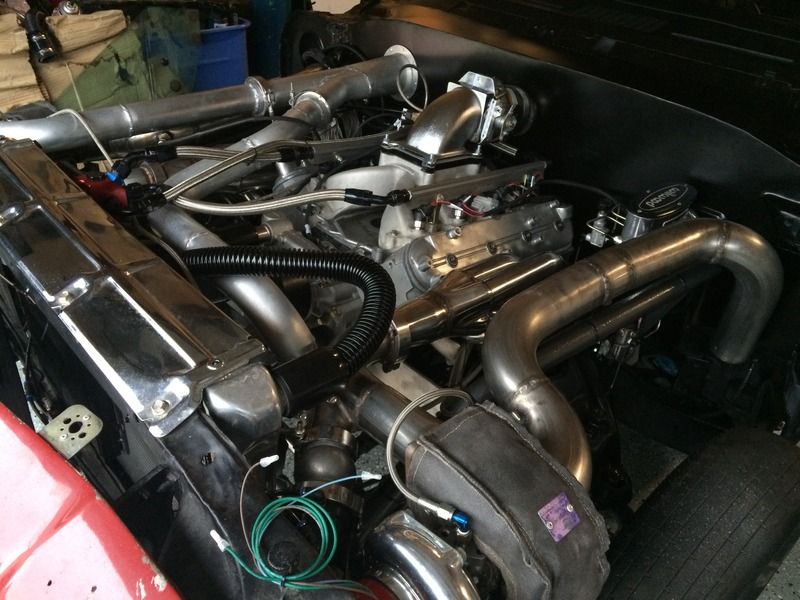

98Camarod · 11-20-2015, 12:01 PM

Quote:

Originally Posted by 05Saleen

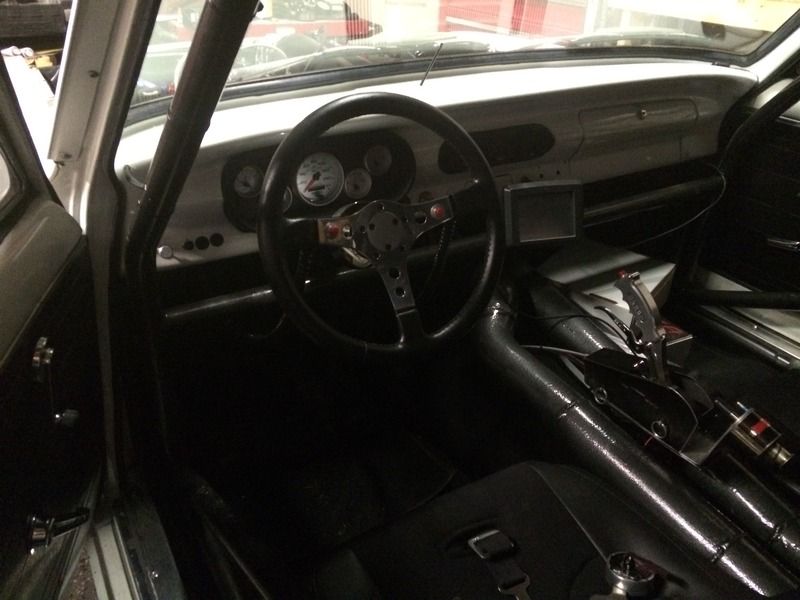

Can you post some pic's of the motor and interior of the Chevy 2

05Saleen · 11-20-2015, 01:46 PM

Very Nice!!

BigdaddyDupree · 11-21-2015, 06:34 PM

Quote:

Originally Posted by 98Camarod

That's where this plate holds the motor. I'd rather not get an electric pump since I already have the mechanical pump

I'm sure I can ask around and find someone to kill the water pump. If it were me and I was having it milled then I'd have a new one done possibly 2. Just for a backup.

98Camarod · 12-30-2015, 07:43 AM

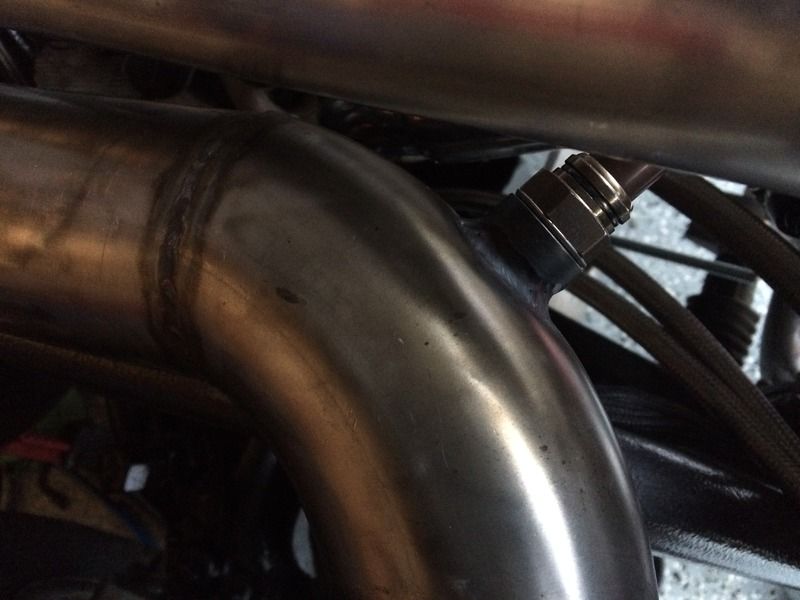

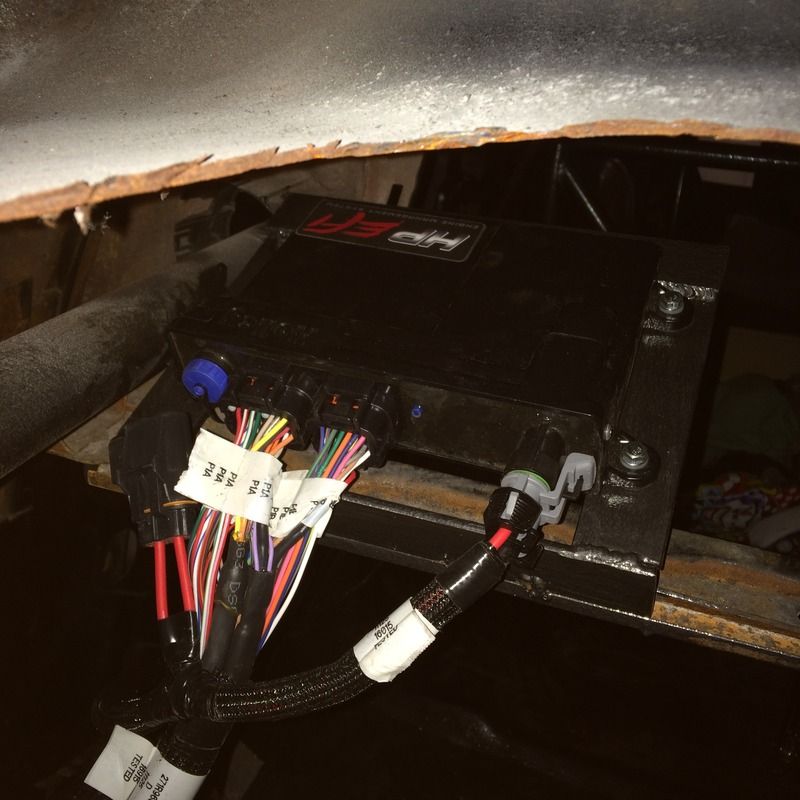

I got the brakes bled, which I thought was going to be a nightmare but there are no leaks! I have all AN stainless lines. I used the Eastwood vice flaring tool. I also welded in a new bung for the Holley wideband. Which was indeed a nightmare. During my welding I had a plug in there to not distort the bung. Well, there were several distractions and I didn't move the plug after each weld and it ended up screwing up several of the bottom threads. Luckily the wideband doesn't use them and it was a big bitch to get it out. I ran a thread chaser down it and all is well now. I cleaned up some of the wiring and put caps on wires that I won't be using immediately. I cut out a portion of the motor plate for my alternator and need to mount that still as well as fab up a tensioner and idler pulley setup.

If anyone has the door rear guide upper mounting plates and doesn't need them, I would gladly buy them. I cannot find them any where!

Still alot left to do, but I'm getting closer. I have to figure out the electric fan wiring with the Holley, make a shifter mount, hook up the shifter, install driveshaft, install alternator, make the tensioner/idler setup, get the correct size belt, do something with the coolant vents, some sort of PCV setup, throttle cable, get a pedal, get seats, make mounts, parachute release, figure something out with the door glass, install the door panels, cranks, and armrests, test the wiring to make sure this bitch doesn't burn down, check for fuel leaks, setup the Holley system, and I'm sure there's more.

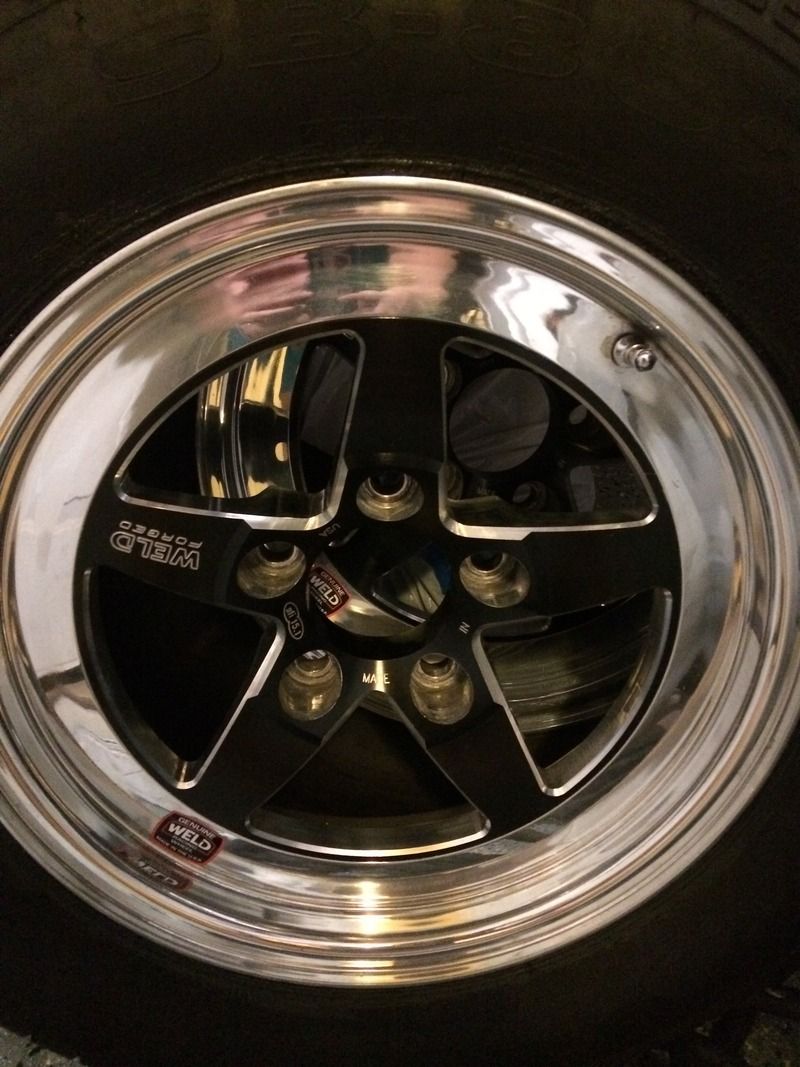

I also picked these front wheels up to match the rears:

04ctd · 12-30-2015, 08:26 AM

Nice!

LMK if you need some help with the fan wiring, i can bring a few boxes of toy's up, and we can do it up right.

BigdaddyDupree · 12-30-2015, 10:03 AM

how hard is it to work on this one with the other one sitting there.

98Camarod · 12-30-2015, 11:42 AM

Quote:

Originally Posted by 04ctd

Nice!

LMK if you need some help with the fan wiring, i can bring a few boxes of toy's up, and we can do it up right.

Thanks, I'll probably end up doing it later today at some point. I've got some left over 30amp relays that I hope will be sufficient.

98Camarod · 12-30-2015, 11:43 AM

Quote:

Originally Posted by BigdaddyDupree

how hard is it to work on this one with the other one sitting there.

Pretty hard. I don't have enough time. I wish I could get fired lol

BigdaddyDupree · 12-30-2015, 03:38 PM

haha

98Camarod · 12-31-2015, 12:31 AM

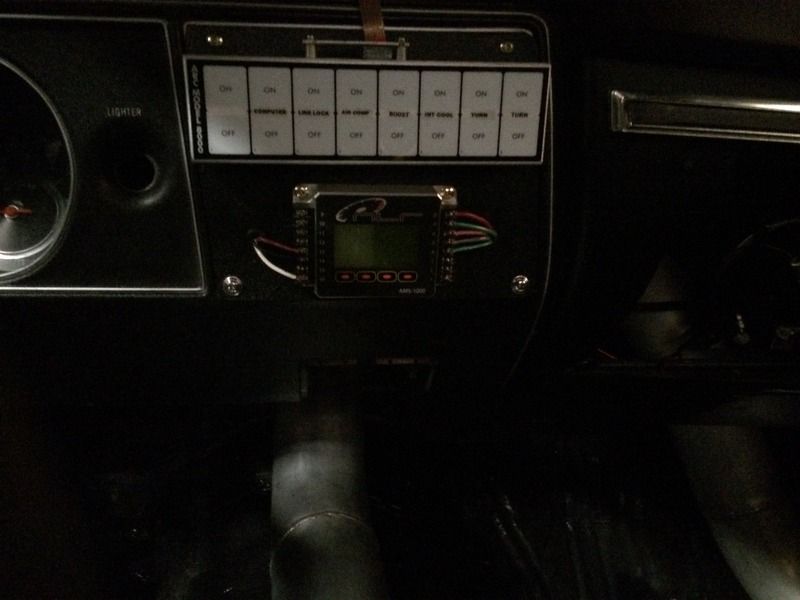

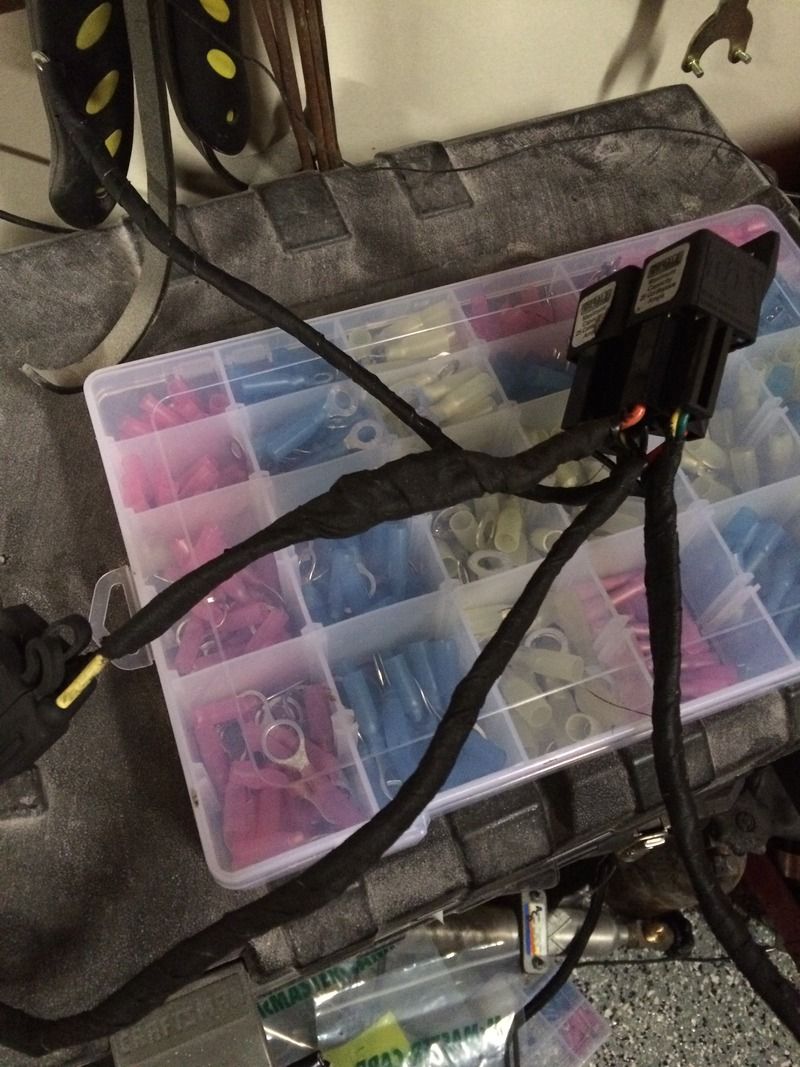

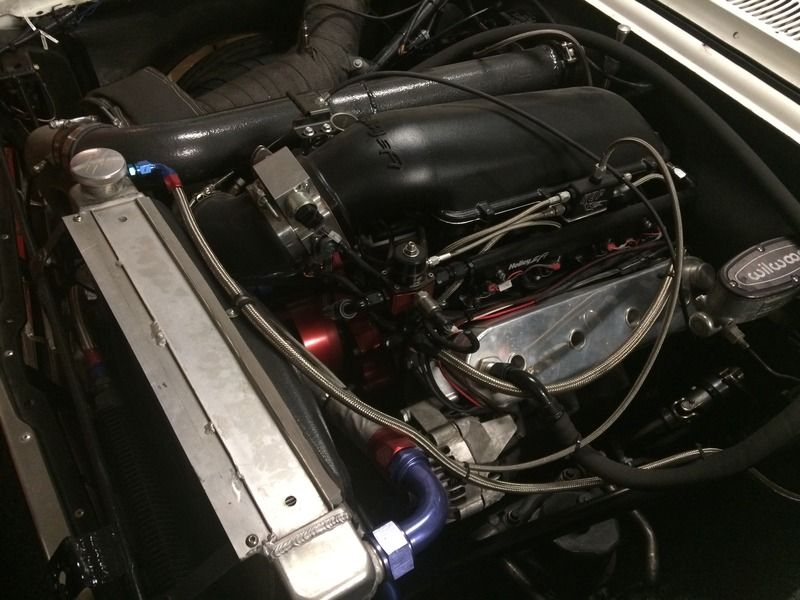

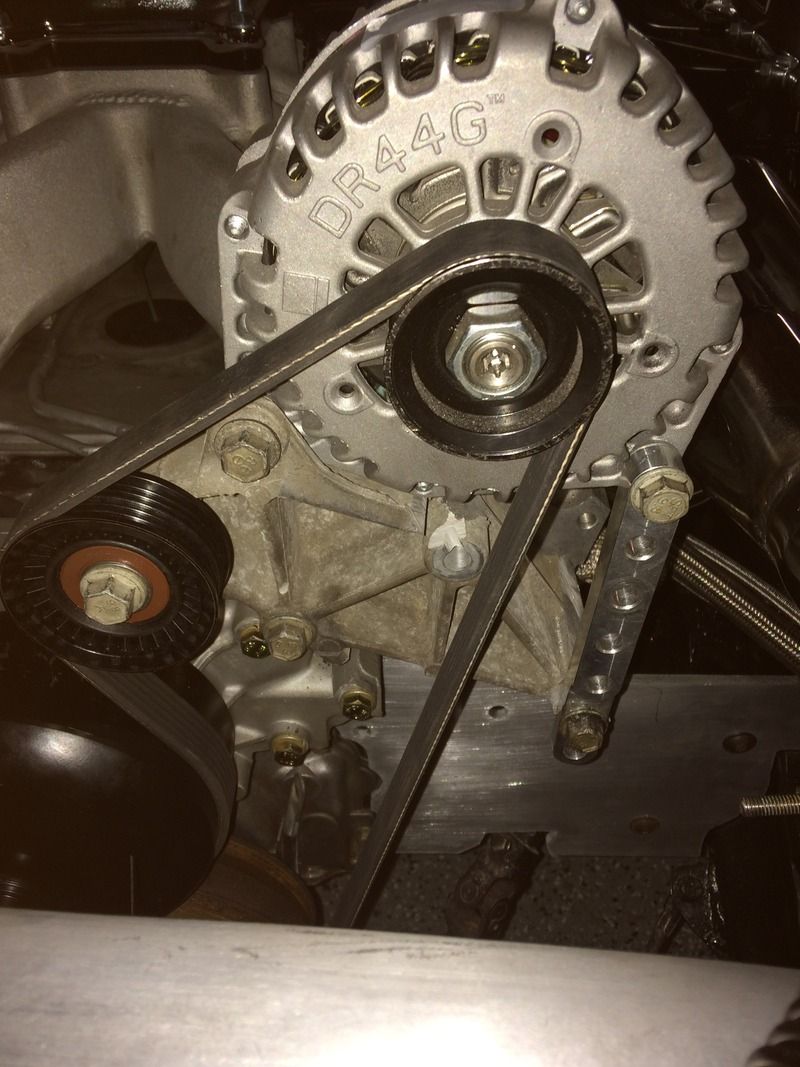

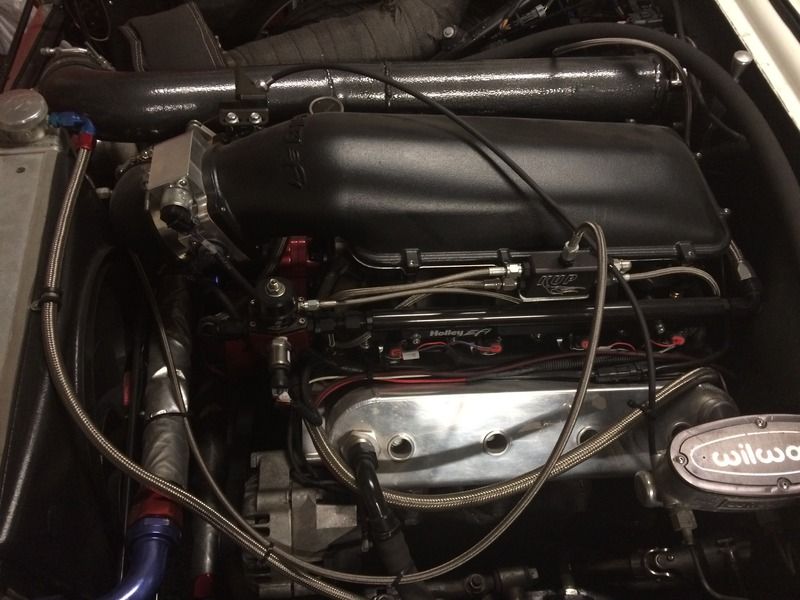

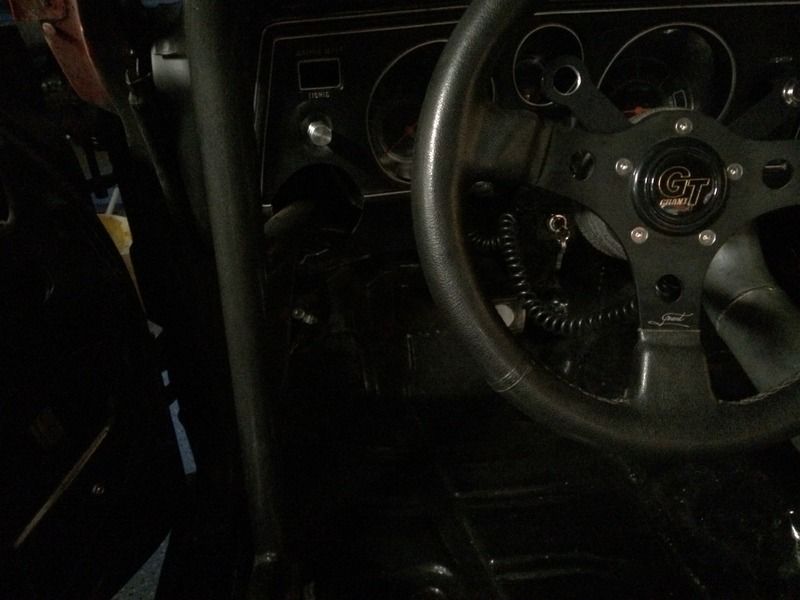

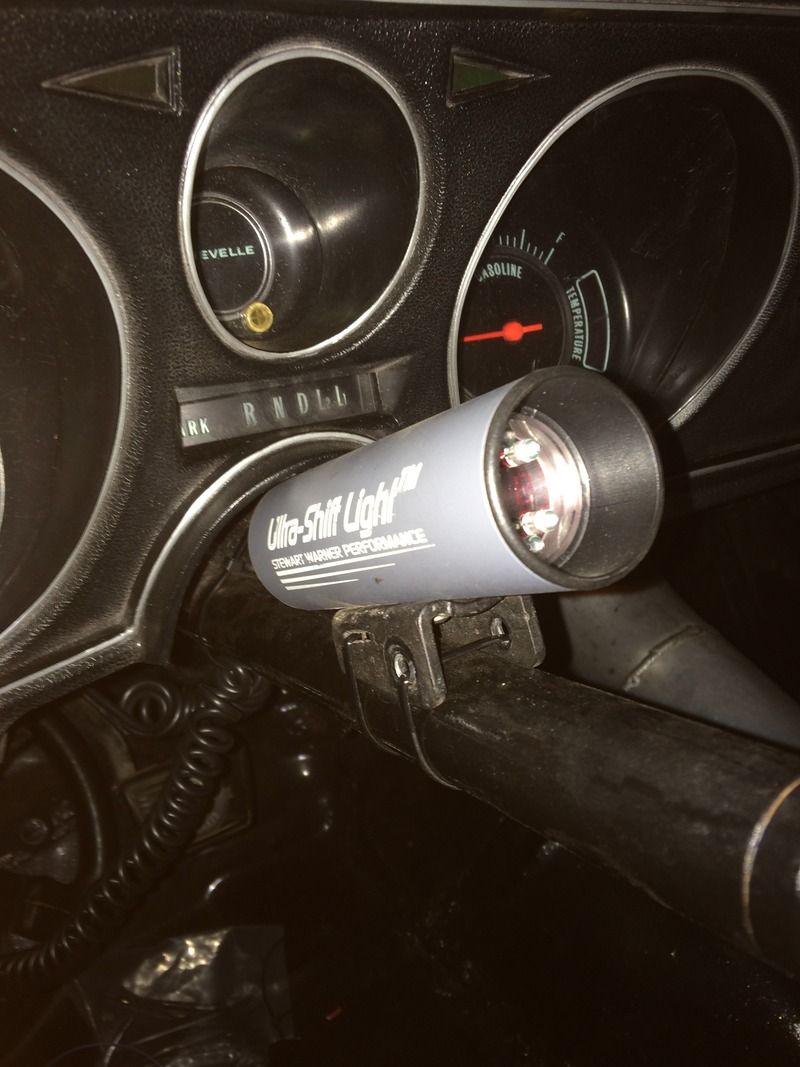

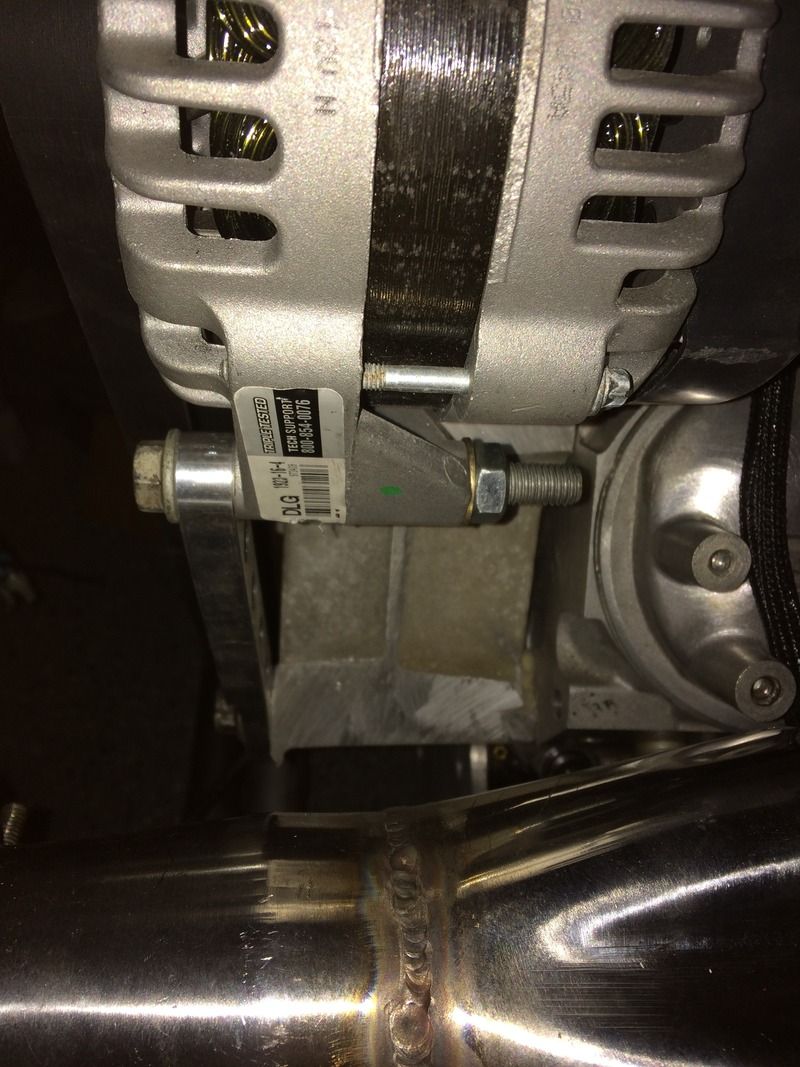

I got what I think is ok, an alternator mount. I cut the original truck bracket so it wouldn't interfere with the motor plate and then cut the other ears off to allow for adjustability. I also made the smooth pulley a ribbed pulley. The alternator is in the way of how I had my fuel line routed, so I had to order a 90 3/8 npt fitting to clear the alternator. I mounted and wired up my tach/shiftlight combo from my old car. Then I got a pair of relays ready for fan wiring.

bambooi · 12-31-2015, 01:04 PM

The build is coming along nicely. Newbie question here- are there any issues with running boost pipes through the interior? I've seen it done before but was curious about it.
There looked like there was room for an air to air FMIC in front of the radiator. It is hard to tell from the pictures though.

98Camarod · 12-31-2015, 01:58 PM

Quote:

Originally Posted by bambooi

The build is coming along nicely. Newbie question here- are there any issues with running boost pipes through the interior? I've seen it done before but was curious about it.
There looked like there was room for an air to air FMIC in front of the radiator. It is hard to tell from the pictures though.

Less efficient, but I couldn't fit the big ass a2w up there.

04ctd · 12-31-2015, 04:33 PM

Quote:

Originally Posted by 98Camarod

Thanks, I'll probably end up doing it later today at some point. I've got some left over 30amp relays that I hope will be sufficient.

Quote:

Originally Posted by 98Camarod

Pretty hard. I don't have enough time. I wish I could get fired lol

sorry, missed out, had to work

does look good!
